Flat Yarn Extrusion Line

Flat tape extrusion equipment for polypropylene and high-density polyethylene. The MY-FS5.5 catalog series covers extrusion, slitting, stretching and winding for woven packaging production.

يشارك：

اتصل بنا

تحقيق

صندوق البريد：sales@kjmach.com

واتس اب：8613806896885

مقدمة مفصلة
موسوعة المنتجات

Flat tape preparation for woven packaging

Kangjia flat tape extrusion equipment processes polypropylene (PP) and high-density polyethylene (HDPE) through heating, extrusion, slitting and stretching. The tapes are wound for the subsequent weaving process.

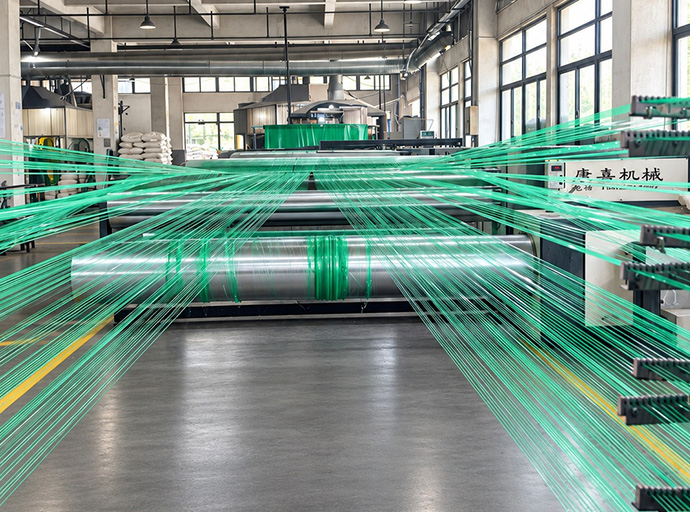

Kangjia flat yarn extrusion line photo

Kangjia flat yarn extrusion line photo. Reference image; confirm the exact machine configuration.

MY-FS5.5 series: catalog reference range

The following values describe the different configurations listed in the MY-FS5.5 series catalog, not a single machine specification.

Parameter	Catalog reference
Screw diameters	110, 120 or 140 mm
Die-lip widths	600, 800, 1000, 1200, 1500 or 2200 mm
Stretching ratio	4-7
Production capacity across listed configurations	30-300 kg/h, depending on the model and operating conditions
Winding speed listed in the catalog	20-150 m/min

Source: Kangjia catalog, printed pages 3-4. The catalog also describes recycled-material processing; compatibility must be checked against the actual feedstock and required tape properties. Catalog values are not a guaranteed output for every material. Confirm the selected model and configuration before ordering.

What to include in your enquiry

Tell us the polymer and feedstock composition, required tape width and thickness, target output, winding requirements, power supply and available floor space.

Discuss your extrusion requirements or review the next process: circular loom weaving.

About Zhejiang Kangjia Machinery

Founded in 2012, Zhejiang Kangjia Machinery Co., Ltd. is based in Longshan Industrial Park, Aojiang Town, Pingyang County, Zhejiang, China. The company operates a 3,000 m² production site and manufactures flat-tape drawing and extrusion machines, winding machines, Crochet Knitting Machines, film-lamination equipment, circular looms, pelletizing machines, Hydraulic Balers and related machinery. Its products are supplied across China and exported to Russia, the Middle East, Africa and Southeast Asia. Kangjia has production, technical, R&D and design teams, and discusses custom machine dimensions and functions against each buyer’s requirements. It provides technical guidance and after-sales support for its equipment. The company is a member of the China Plastics Machinery Industry Association and the China Packaging Federation. Final specifications, delivery scope and service terms are confirmed in the project quotation.

Share your material, product sample and target specification with Kangjia for a model-specific discussion.

What Is a Flat Yarn Extrusion Line?

In woven-packaging terminology, “flat yarn” usually means a narrow plastic tape rather than conventional spun yarn. A flat yarn extrusion line prepares polymer, forms film or tape, stretches the material and winds it for Circular Weaving. PP and HDPE are material options mentioned in the Kangjia range; the correct process setup depends on the actual grade and product.

How to Plan the Line

Define the polymer, target tape width and thickness, winding package, intended loom and finished woven-fabric specification. Check the plant layout and utilities against the proposed line. A stable upstream tape supply helps the downstream loom run with the intended fabric construction.

This page covers a product range and catalog references, not one fixed model. Confirm equipment units, output, power and process parameters in the selected quotation.
