The KS series is designed for baling plastic woven bags, bulk bags, waste paper, cotton fabrics and other soft materials. Select the model according to the material to be compressed, the required bale dimensions and the handling arrangement.

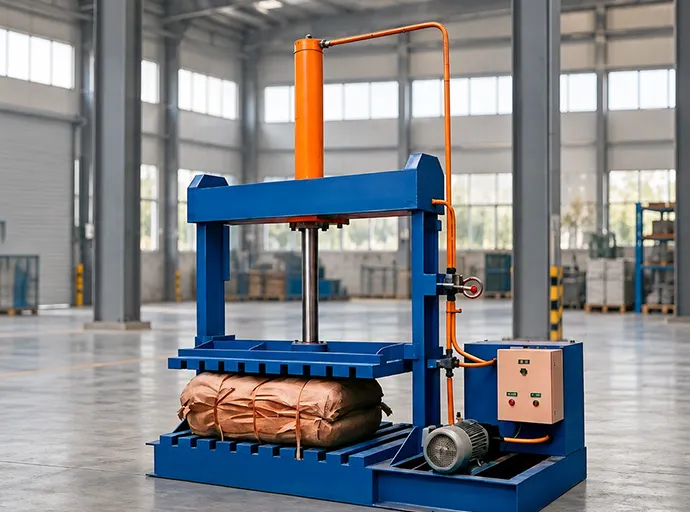

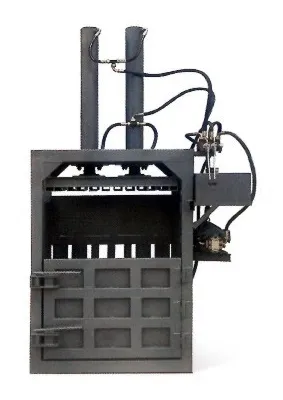

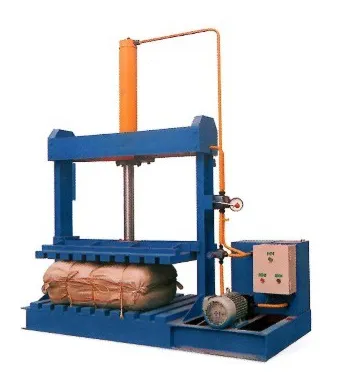

KS series hydraulic packer reference photo. Reference image; confirm the exact machine configuration.
| Parameter | KS-850 | KS-1100 | KS-1200 | KS-1600 |
|---|---|---|---|---|
| Oil cylinder diameter (mm) | 125 | 140 | 160 | 140 |
| Rated working pressure (MPa) | 6-8 | 13-15 | 10-12 | 18-20 |
| Piston stroke (mm) | 750 | 900 | 1000 | 1100 |
| Motor power (kW) | 2.2 | 7.5 | 11 | 5.5 |
| Machine weight (kg) | 1000 | 1500 | 2000 | 3500 |
Source: Kangjia catalog, printed page 25. KS-1600 is listed as the waste-paper box type. Catalog specifications are subject to change; confirm the selected model and configuration before ordering. The photographs do not identify individual submodels.
Please provide the material, its condition before packing, required bale size, target throughput, available power supply and installation space. Packing results depend on the material and operating conditions.
Contact Kangjia about a KS hydraulic packer or browse winding and packing machinery.
Founded in 2012, Zhejiang Kangjia Machinery Co., Ltd. is based in Longshan Industrial Park, Aojiang Town, Pingyang County, Zhejiang, China. The company operates a 3,000 m² production site and manufactures flat-tape drawing and extrusion machines, winding machines, Crochet Knitting Machines, film-lamination equipment, circular looms, pelletizing machines, Hydraulic Balers and related machinery. Its products are supplied across China and exported to Russia, the Middle East, Africa and Southeast Asia. Kangjia has production, technical, R&D and design teams, and discusses custom machine dimensions and functions against each buyer’s requirements. It provides technical guidance and after-sales support for its equipment. The company is a member of the China Plastics Machinery Industry Association and the China Packaging Federation. Final specifications, delivery scope and service terms are confirmed in the project quotation.
A hydraulic packer, also called a baler, compresses loose or flexible material into a compact bale for handling, storage or transport. The KS series is presented for woven bags, bulk bags, waste paper, cotton fabrics and similar soft materials. It is a packing and volume-reduction machine, not a machine that produces the woven material itself.
State the material, its condition when loaded, the intended bale dimensions and how the bales will be moved. Feeding method, available floor space and electrical supply affect the practical arrangement. If several materials will be packed, identify the most demanding one and discuss the changeover with Kangjia.
Bale size, cycle time, force and included accessories vary by configuration. Ask for a model-specific technical sheet and quotation instead of treating a series photograph as a performance specification.
